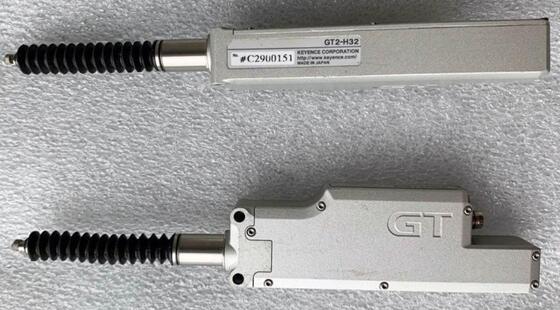

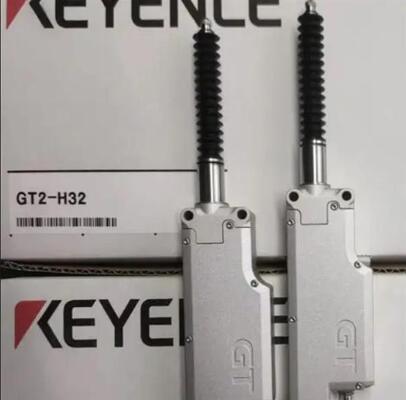

KEYENCE GT2-H32 High-Precision Contact Displacement Sensor

Product Overview

The KEYENCE GT2-H32 is a high-precision contact displacement sensor designed for industrial automation measurement scenarios, delivering stable and accurate detection performance even in complex production environments. As a core model of the KEYENCE GT2 series, this sensor combines the advantages of high resolution, strong anti-interference and long service life, and is widely used in size inspection, position positioning, appearance defect detection and other links in the 3C electronics, automobile manufacturing, precision hardware, packaging and other industries. Floating Light Automation is an authorized supply partner of KEYENCE industrial products, with stable supply channels and sufficient inventory reserves to provide global customers with genuine original GT2-H32 sensors and complete after-sales support.

Key Technical Specifications

Core Product Advantages

Ultra-high measurement accuracy to meet precision inspection requirements

The GT2-H32 uses KEYENCE's original optical detection principle combined with a high-precision mechanical probe structure, which can achieve 0.5 μm repeatability accuracy in the full measurement range of ±20mm. Whether it is the thickness detection of thin-film materials, the step height measurement of printed circuit boards, or the runout detection of rotating shaft workpieces, it can output stable and reliable measurement data, helping enterprises to achieve 100% full inspection of product quality and reduce the outflow of defective products.

Strong anti-interference ability, stable operation in harsh industrial environments

The sensor head of GT2-H32 adopts a fully sealed structure with IP64 protection class, which can effectively resist the intrusion of dust, oil mist and water splashes in the production workshop. At the same time, the built-in unique noise suppression algorithm can avoid the interference of ambient temperature change, vibration and electromagnetic on the measurement results, and ensure that the measurement error is controlled within the allowable range during long-term continuous operation.

Flexible installation, compatible with a variety of automation scenarios

Adopting a separate design of the sensor head and the amplifier unit, the GT2-H32 can achieve flexible installation in narrow equipment space. The probe can be fixed by standard mounting threads, and can be adapted to different installation directions and angles, which is convenient for integrating into existing production lines or testing equipment. At the same time, the sensor supports a variety of output methods, which can seamlessly connect with PLC, industrial computer and other control systems, reducing the difficulty of equipment transformation.

GT2 Series Model Comparison

KEYENCE GT2 series provides a variety of sensor head models to meet different measurement range and accuracy requirements. The following is a comparison of common models of the same series for your selection reference:

From the comparison results, the GT2-H32 has a very high cost performance in the medium measurement range. It balances the requirements of accuracy, range and use cost, and is the most widely used general model in the GT2 series.

Recommended Matching Combinations

The GT2-H32 sensor head needs to be used with the GT2 series amplifier unit. We recommend the following matching solutions according to different application requirements:

Basic industrial inspection solution

Matching:GT2-H32 + GT2-75N(digital amplifier with NPN output)
This solution is suitable for most conventional size inspection and positioning scenarios, supports RS-232C communication output, can directly connect with the mainstream industrial control system on the market, and is suitable for automated production lines, special testing equipment and other scenarios. The cost is moderate, and it can meet the conventional measurement accuracy and response speed requirements.

High-speed continuous inspection solution

Matching:GT2-H32 + GT2-76N(high-speed digital amplifier with NPN output)
The amplifier supports 10kHz full-speed response, which is suitable for high-speed production lines that require continuous inspection, such as online thickness inspection of rolled materials, appearance inspection of high-speed moving workpieces, etc. It can output measurement data in real time, ensuring no missing detection in the production process.

Multi-sensor synchronous detection solution

Matching:Multiple GT2-H32 + GT2-1000 (main amplifier) + GT2-CHM expansion module
For scenarios that require multi-point synchronous measurement (such as flatness detection of large workpieces, coaxiality detection of shaft parts), you can choose 2-8 GT2-H32 sensor heads to match the main amplifier and expansion module. This solution can realize synchronous data acquisition of multiple channels, simplify system wiring and reduce the difficulty of system integration.

Analog output integration solution

Matching:GT2-H32 + GT2-500(analog output amplifier)
If you need to access the traditional analog control system, this matching method can output 4-20mA or 0-10V analog signals corresponding to the displacement, which is convenient for connecting with the old equipment control system and is suitable for the transformation of the old production line.

Our Supply Capacity and Source Guarantee

As an authorized industrial product supply partner of KEYENCE, Floating Light Automation has the following supply guarantees for the GT2-H32 sensor:

• Genuine original guarantee: All GT2-H32 sensors we supply are original authentic products from KEYENCE's official production line, each product has a unique serial number that can be checked on KEYENCE's official website, and we provide the official 12-month quality warranty service.
• Sufficient inventory reserve: We maintain a conventional inventory of more than 50 pieces of GT2-H32 in our overseas warehouses in North America and the European Union, and can achieve 48-hour shipment for conventional matching orders. For large-batch customized matching orders, we can complete the delivery within 7-10 working days through the official supply channel of KEYENCE.
• Stable supply channel: We have established a long-term stable cooperative relationship with KEYENCE's official regional distributors, with fixed annual procurement plans, which can avoid the problem of supply shortage caused by market fluctuations. Even in the period of tight supply of industrial components, we can ensure the stable supply of GT2-H32 for long-term cooperative customers.
• Global delivery support: We support bulk and single-piece delivery to all regions around the world, provide complete customs declaration and logistics tracking services, and can meet the procurement needs of different customers such as system integrators, equipment manufacturers, and end-users.

Common Application Scenarios

The GT2-H32 sensor is widely used in the following industrial automation links:

• Thickness and flatness inspection of mobile phone screen glass and battery cover
• Step height and dimension inspection of PCB printed circuit board

Shake detection of automobile engine crankshaft and transmission shaft

• Height detection of electronic components after soldering

• Positioning and dimension inspection of precision stamped parts and injection molded parts

• Defect detection of packaging materials such as bottles and cans

Ordering and After-sales Service

We provide customers with 24-hour online inquiry and quotation service, and can provide technical support such as product selection, installation guidance and measurement plan design according to customer application scenarios. All products sold support 7-day no reason return (unopened original packaging), and within the warranty period, product quality problems occur, we provide free replacement repair service.
If you need to get more product specification documents, 3D drawing files or test samples, please contact our customer service team, we will reply you within 1 working day.
